FLEXTHREAD
A Nail Ahead of the Curve
The proprietary FlexThread Intramedullary Nail System is an innovative solution advancing the treatment of fractures and osteotomies of the fibula and ulna.
Benefit 01
Fracture Reduction
Restore anatomical alignment across the fracture site.
Benefit 02
Fracture Fixation
Absolute or relative stability for optimal bone healing.
Benefit 03
Blood Supply
Preservation of critical periosteal vascularity.
Benefit 04
Early Mobilization
Stable fixation enables earlier safe post-op movement.
Engineering Precision
THE POWER OF
FLEXIBILITY
Self-Contouring Shaft
Dynamic adaptation to patient-specific anatomy through internal canal geometry, reducing the need for aggressive reaming.
ZERO Profile Interlocking Screws
Patented screw design ensures no metal protrusion, eliminating soft tissue irritation and secondary trauma.
Optional End Caps
Prevent bony ingrowth into the nail head, significantly facilitating secondary removal procedures.

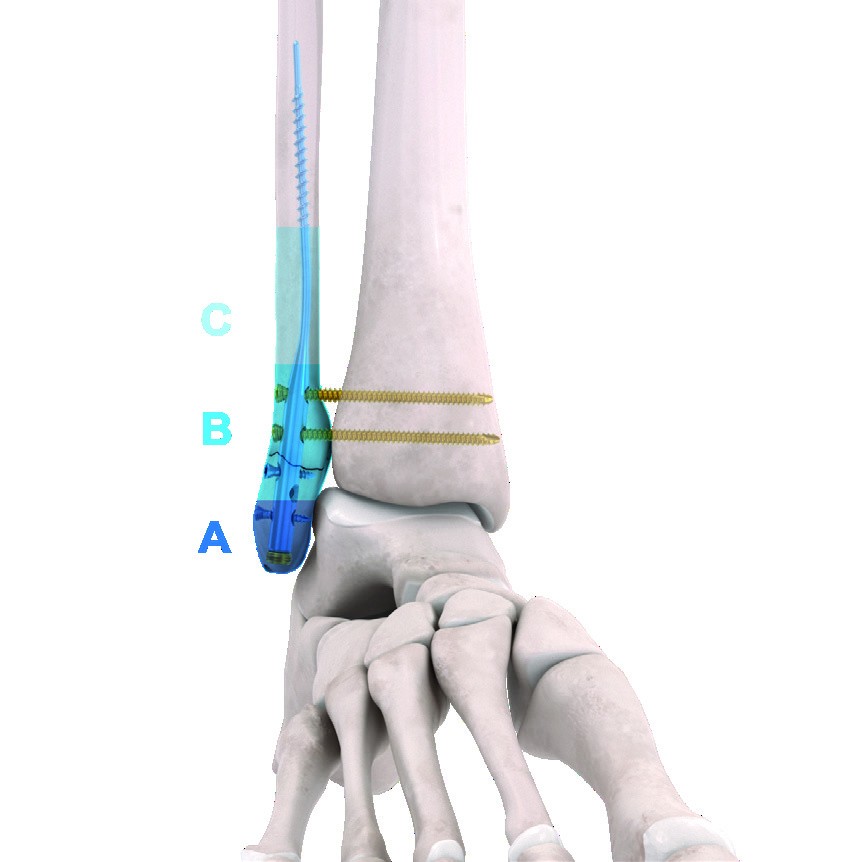

Distal Fibula

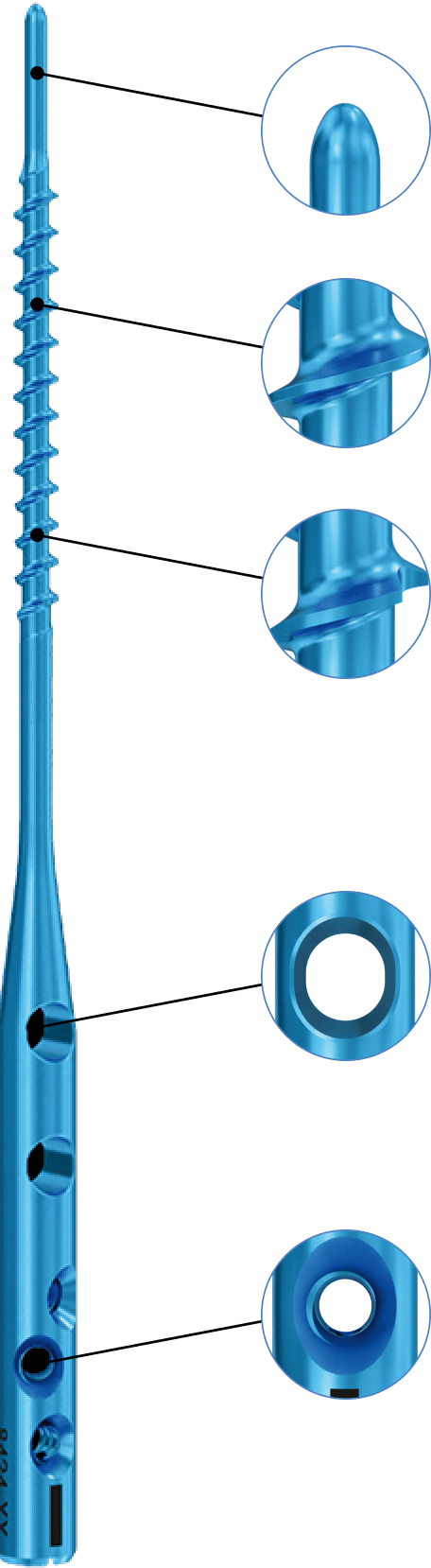

Platform Specifications
Blunt Tip
Atraumatic blunt tip guides nail across fracture site and minimizes cortical disruption.
Self-Cutting Flutes
Self-cutting and self-tapping flutes require no pre-tapping, decreasing procedure time.
Reverse Cutting Flutes
Precision-cut reverse flutes facilitate nail removal when required post-healing.
3.8mm Elongated Holes
Accepts ZERO Profile Interlocking Cortex Screws, standard cortex screws, and flexible syndesmotic fixation devices.
2.7mm Threaded Holes
Accepts 2.7 mm ZERO Profile Interlocking Cortex Screws that lock into the nail for improved fixation.
Sizing Matrix — Distal Fibula
| Nail Diameter | Lengths |
|---|---|
| 3.5mm | 130 mm · 180 mm |
| 4.5mm | 130 mm · 180 mm |
| 5.5mm | 130 mm · 180 mm |

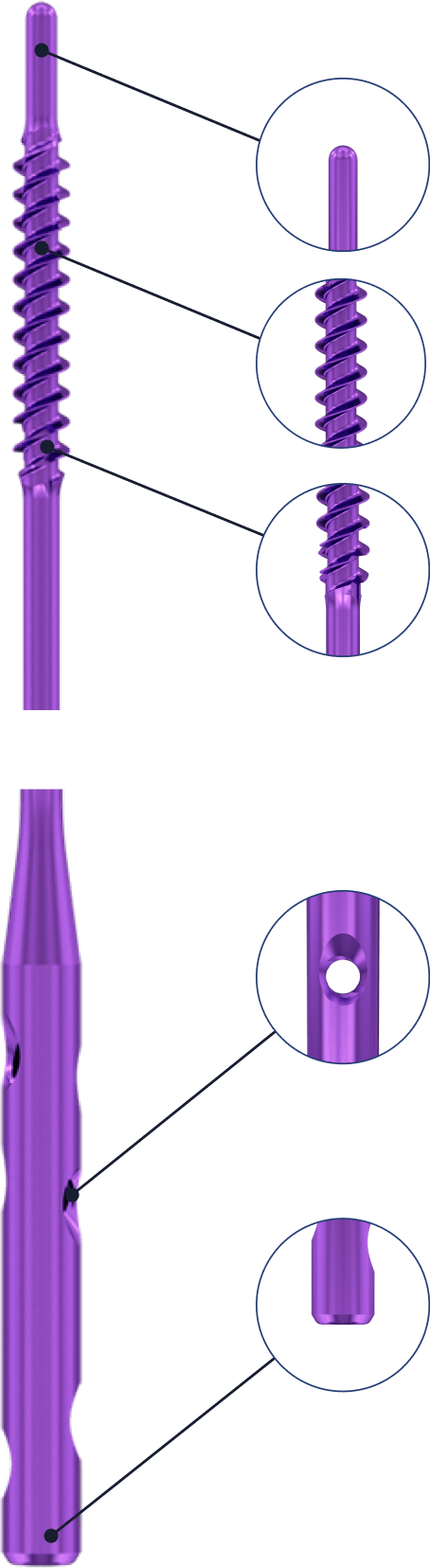

Ulna Platform
Forearm Reconstruction
Blunt Tip
Smooth atraumatic profile for effortless advancement through the ulnar canal.
Self-Cutting Flutes
Precision-ground leading edge for efficient cutting — no pre-tapping required.
Reverse Cutting Flutes
Engineered for trauma-free extraction during secondary revisions.
Interlocking Screw Holes
Accepts 3.5 mm ZERO Profile Interlocking Cortex Screws for superior rotational stability.
Low Profile Design
Minimalist geometry reduces postoperative palpable hardware discomfort.
Sizing Specifications
UL_4565_MOD4.5mm
DIA
5.5mm
DIA
6.5mm
DIA
Available lengths: 210 mm, 240 mm, 270 mm

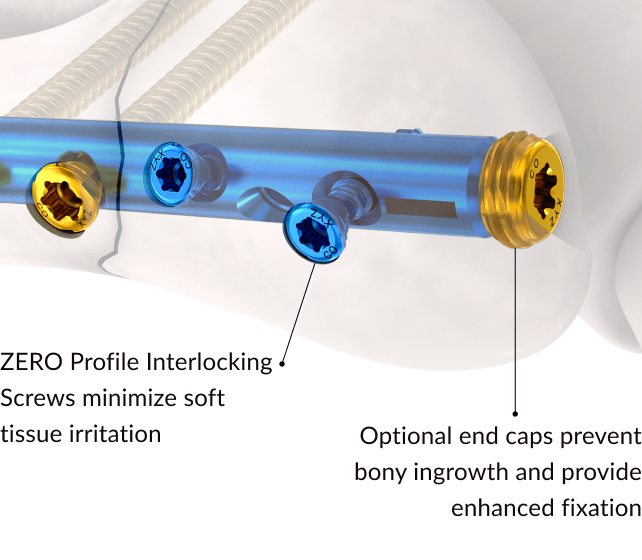

End Caps
Precision-engineered end caps designed to prevent bony ingrowth into the nail head, significantly facilitating secondary removal procedures and protecting the surrounding soft tissue.
Documentation
Surgical Technique Guide
Surgical Technique Guide
FlexThread Distal Fibula IM Nail System
